SHOW ME THE DIFFERENTIAL CARNAGE !

[Hemituner]

The Title says it all, Please post Pics of your differential explosions and the aftermaths.
Thanks
AJ



[BULL]

Subscribed for the violence!



[Marc W]

This could get ugly 😬



[BULL]

This could get ugly 😬

And sad....



[Old Mopar Guy]

And sad....

And expensive!



[1971demon]

And expensive!

Where's the beef??



[SlamminSixTwo]

In for pics.............



[Xylander]

This isn't a Chevy forum. You'd get more action over there.



[DMNkilr]

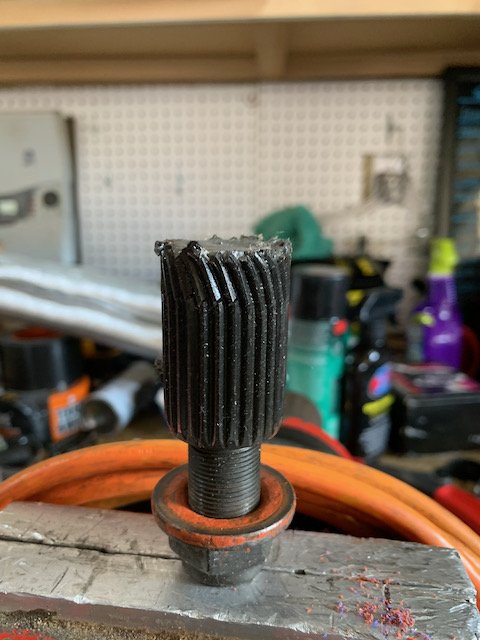

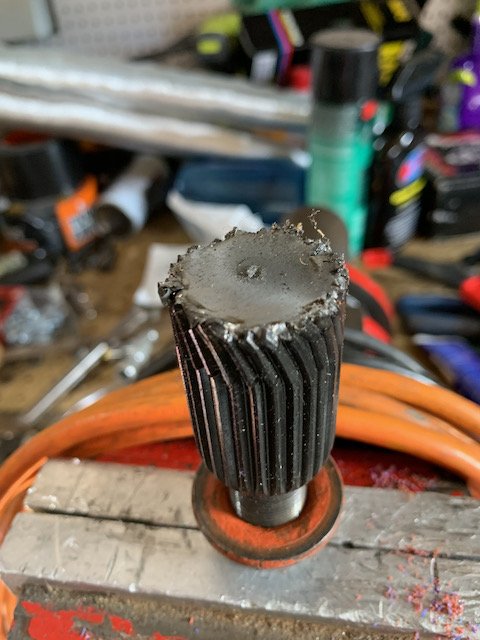

Not Much, but it's all I've got. 28 spline pinion shaft on a g-force 9" rear end. Five hundred more RPM than planned and didn't exactly roll into the launch. Well prepped track in Houston. Since replaced with a Mark Williams 35 spline pro gear third member. The difference in the pinion and pinion support areas is noticeable. Rebuilding the 28 spline for
a 1/2 mile and mile set with a 3.0 ring and pinion



[swatdocsc]

I can't post a photo of a diff that I'm going to blow up in August now can I AJ? it's only May.

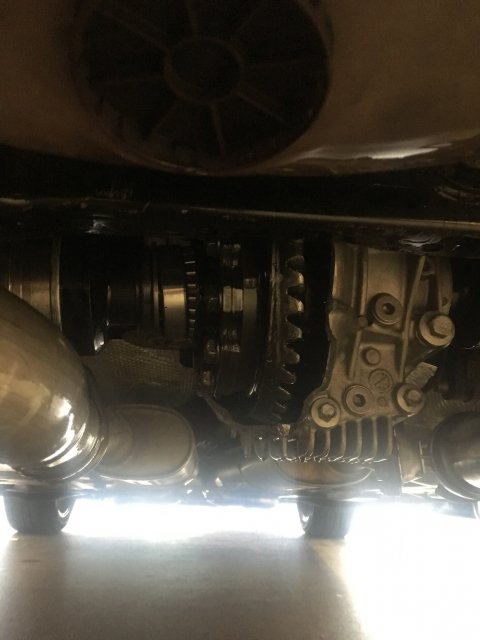

[Chuck]

It’s always a fun time



[Chuck]

Went to a Ford 9” after this



[DemonSRT]

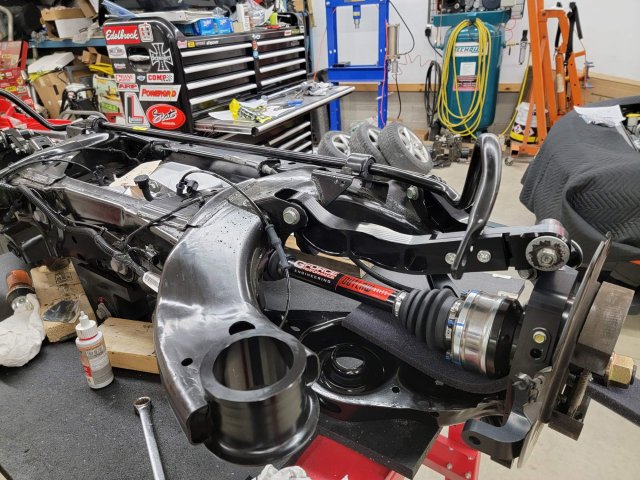

This is the best in my opinion, all MOPAR.
Factory 9.05512 dia. gears in Billet case.
Uses all OEM and aftermarket Driveshafts & Halfshafts.
Thanks AJ!! @Hemituner



[fumanchu182]

I am the owner of the Hellcat that talked to you while you were in the staging lanes to compliment you on the car at the MHSH at MIR. Well we took the diff out this week after winning the 10.0 index.



[Octanewide]

This is the best in my opinion, all MOPAR.
Factory 9.05512 dia. gears in Billet case.
Uses all OEM and aftermarket Driveshafts & Halfshafts.
Thanks AJ!! @Hemituner View attachment 46509 View attachment 46510 View attachment 46511 View attachment 46513 View attachment 46514

What's the price tag on that jewelry?



[DemonSRT]

What's the price tag on that jewelry?

Your best bet would be to contact AJ at Hemituner Performance as I would not be able to tell you what the current cost is in case it changed from when I ordered it. You won't be sorry though. Great product, great person to deal with. Stands behind everything he does and sells.



[fumanchu182]

Full autopsy video.



[Tape]

View attachment 46511

Beautiful



[stonewall]

This is the best in my opinion, all MOPAR.
Factory 9.05512 dia. gears in Billet case.
Uses all OEM and aftermarket Driveshafts & Halfshafts.
Thanks AJ!! @Hemituner View attachment 46509 View attachment 46510 View attachment 46511 View attachment 46513 View attachment 46514

That's a piece of Art. But for street driving, it probably should have some cooling fins.



[DemonSRT]

That's a piece of Art. But for street driving, it probably should have some cooling fins.

I mostly drive my car on the street and have had no issues from excessive heat build up over the norm. A few things to keep in mind, none of the old school diffs or other aftermarket diffs available for our cars have cooling fins either, aluminum dissipates heat faster, we are now using synthetic gear oils compared to old school which are much better, plus you would create higher temps on the track then you would on the street. I am also changing the oil in the diff more often. If I do notice any issues along the way, then I can always install a diff cooler. But so far everything looks good.
